#96 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 5999303

Precision Twist Drill

#96 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 5999303

MFR# 5999303Series R10P-R15P-R18P

$17.88List $22.54 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

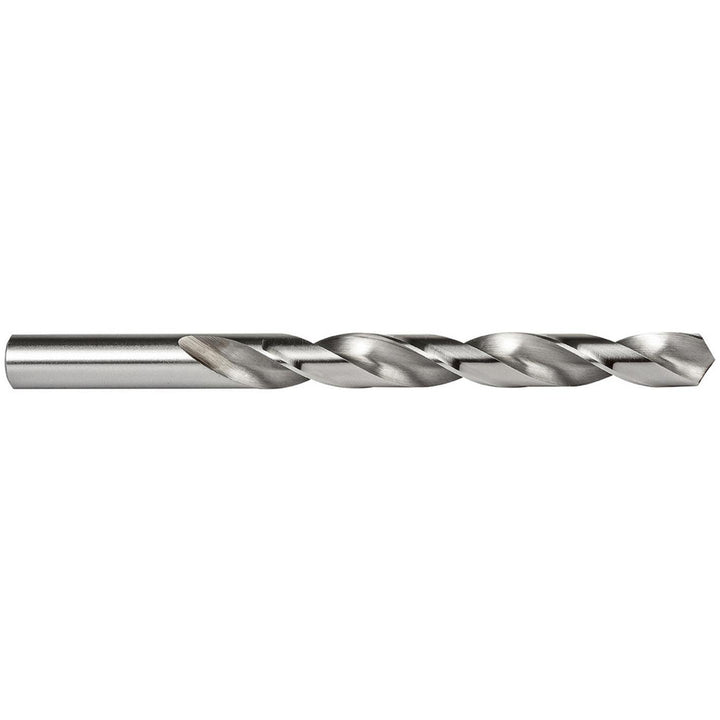

The Precision Twist Drill 5999303 is a #96 High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1/16 flute length, 3/4in overall length. Series R10P-R15P-R18P.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0063
Drill bit size range0.0000 - 0.0500
Drill bit size wire#96
Drill point angle degrees118
Flute by diameter ratio10xD
Flute length in1/16
Flute typeSpiral
Maximum drilling depth in1/16
Number of flats0
Number of flutes2
Overall length in3/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.0063
Shank length in11/16
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
