#27 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999359

Precision Twist Drill

#27 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999359

MFR# 5999359Series R10A-R15A-R18A

$2.73List $3.44 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 12 — minimum order 12

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingSteam Oxide

Description

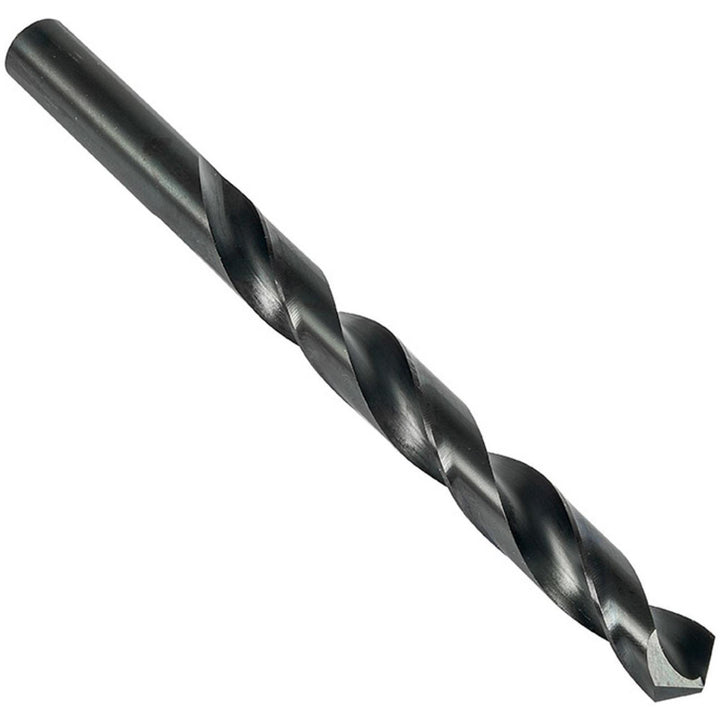

The Precision Twist Drill 5999359 is a #27 High Speed Steel drill bit with a Steam Oxide finish, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1-7/8 flute length, 3 overall length. Series R10A-R15A-R18A.

Specifications

Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.1440
Drill bit size range0.1000 - 0.1500
Drill bit size wire#27
Drill point angle degrees118
Flute by diameter ratio13xD
Flute length in1-7/8
Flute typeSpiral
Maximum drilling depth in1-7/8
Number of flats0
Number of flutes2
Overall length in3
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.1440
Shank length in1-1/8
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
