Precision Twist Drill

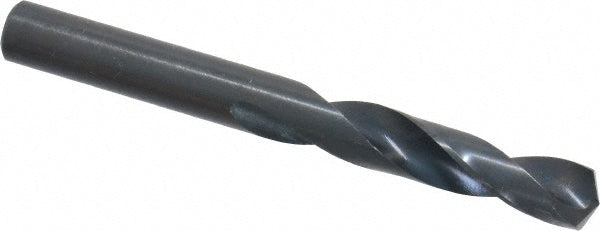

19/64" High Speed Steel Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5999429
MFR# 5999429Series R40C
$4.76List $6.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
CoatingCoated
Description
The Precision Twist Drill 5999429 is a 19/64" High Speed Steel Screw Machine drill bit with a Coated finish, 135° point. Suited for titanium. 1-9/16 flute length, 2-3/4 overall length. Series R40C.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size in19/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-9/16
Flute typeSpiral
Overall length in2-3/4
Point typeSplit
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI; NAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
