Precision Twist Drill

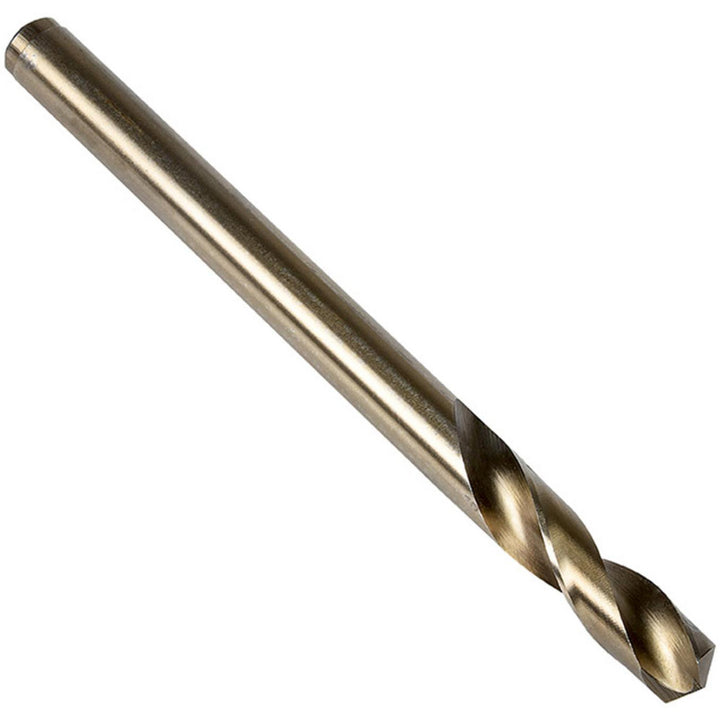

#30 High Speed Steel Drill Bit, Oxide, 135° point - Precision Twist Drill 5999815
MFR# 5999815Series R88CO-R89CO
$3.68List $4.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Precision Twist Drill 5999815 is a #30 High Speed Steel drill bit with a Oxide finish, 135° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 15/16 flute length, 2-3/4in overall length. Series R88CO-R89CO.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees135
Flute by diameter ratio7xD
Flute length in15/16
Flute typeSpiral
Maximum drilling depth in15/16
Number of flats0
Number of flutes2
Overall length in2-3/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.1285
Shank length in1-13/16
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
