Precision Twist Drill
1/8" High Speed Steel Drill Bit, Oxide, 135° point - Precision Twist Drill 6000163
MFR# 6000163Series R88CO-R89CO
$4.06List $5.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingOxide
Description

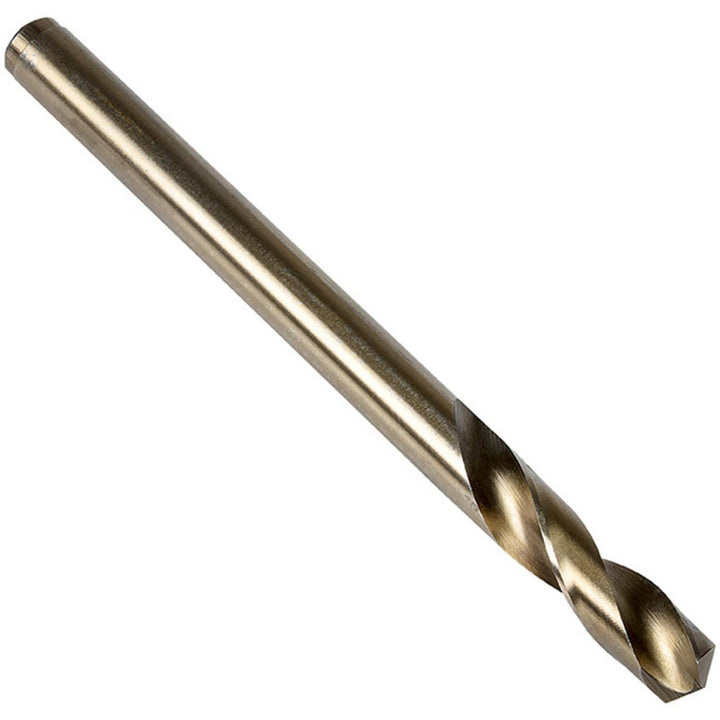

The Precision Twist Drill 6000163 is a 1/8" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 7/8 flute length, 2-3/4in overall length. Series R88CO-R89CO.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute by diameter ratio7xD
Flute length in7/8
Flute typeSpiral
Maximum drilling depth in7/8
Number of flats0
Number of flutes2
Overall length in2-3/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/8in
Shank length in1-7/8
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
