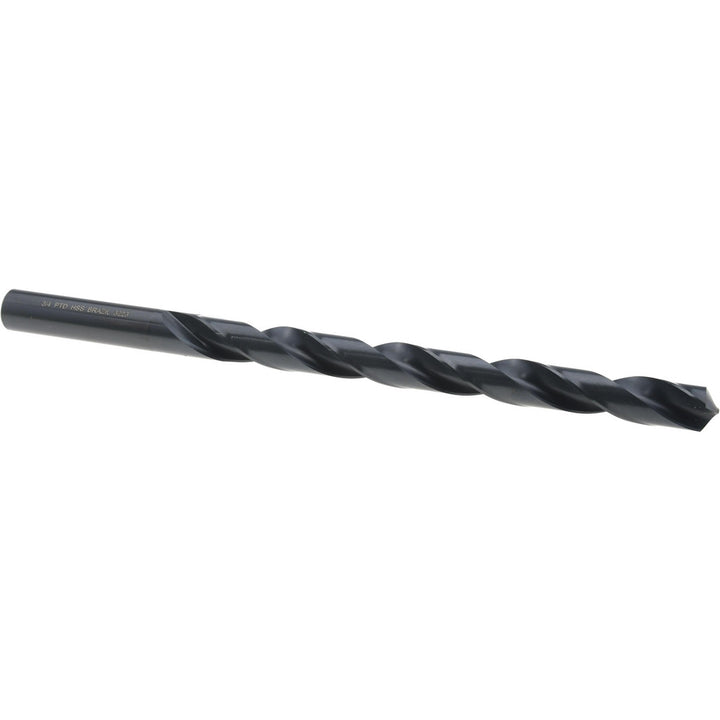

3/4" High-Speed Steel Drill Bit, 118° point - Precision Twist Drill 6000247

Precision Twist Drill

3/4" High-Speed Steel Drill Bit, 118° point - Precision Twist Drill 6000247

MFR# 6000247Series 1290

$93.10List $119.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/4
Flutes2

Description

The Precision Twist Drill 6000247 is a 3/4" High-Speed Steel drill bit, 118° point. Suited for aluminum magnesium, copper, nickel, synthetic, titanium. 9 flute length, 12 overall length. Series 1290.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size in3/4
Drill point angle118
Flute by diameter ratio12xD
Flute length in9
Flute typeSpiral
Number of flutes2
Overall length in12
Point typeStandard
Primary workpiece materialAluminum Magnesium; Copper; Nickel; Synthetic; Titanium
Secondary workpiece materialHardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel; Steel
Shank diameter in3/4
Shank length3.0000
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
