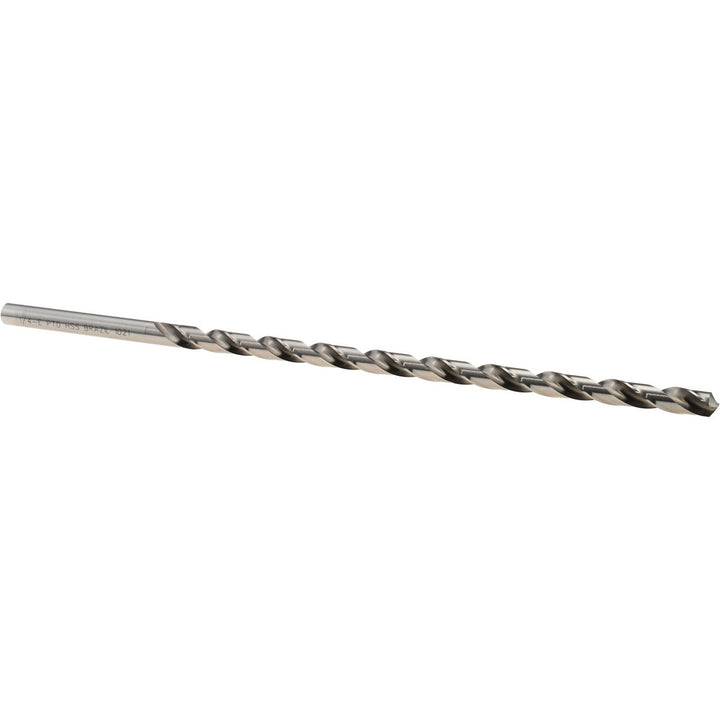

1/4" High-Speed Steel Drill Bit, 118° point - Precision Twist Drill 6000274

Precision Twist Drill

1/4" High-Speed Steel Drill Bit, 118° point - Precision Twist Drill 6000274

MFR# 6000274Series 860

$21.40List $27.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/4
Flutes2

Description

The Precision Twist Drill 6000274 is a 1/4" High-Speed Steel drill bit, 118° point. Suited for aluminum magnesium, copper, nickel, synthetic, titanium. 6 flute length, 8 overall length. Series 860.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size in1/4
Drill point angle118
Flute by diameter ratio12xD
Flute length in6
Flute typeSpiral
Number of flutes2
Overall length in8
Point typeStandard
Primary workpiece materialAluminum Magnesium; Copper; Nickel; Synthetic; Titanium
Secondary workpiece materialHardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel; Steel
Shank diameter in1/4
Shank length2.0000
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
