Precision Twist Drill

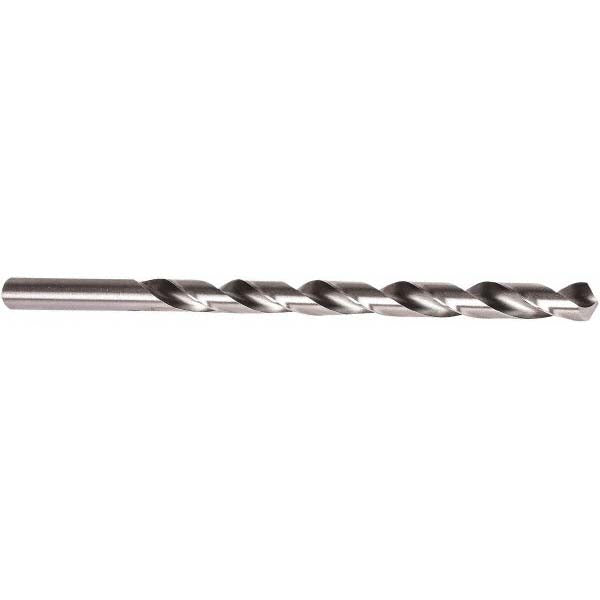

9/16" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6000286
MFR# 6000286Series 1813
$125.53List $158.21
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
Flutes2
Description
The Precision Twist Drill 6000286 is a 9/16" High Speed Steel drill bit, 118° point. Suited for aluminum magnesium, copper, nickel, synthetic, titanium. 13 flute length, 18 overall length. Series 1813.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size in9/16
Drill point angle118
Flute by diameter ratio15xD
Flute length in13
Flute typeSpiral
Number of flutes2
Overall length in18
Point typeStandard
Primary workpiece materialAluminum Magnesium; Copper; Nickel; Synthetic; Titanium
Secondary workpiece materialHardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel; Steel
Shank diameter in9/16
Shank length5.0000
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
