Precision Twist Drill

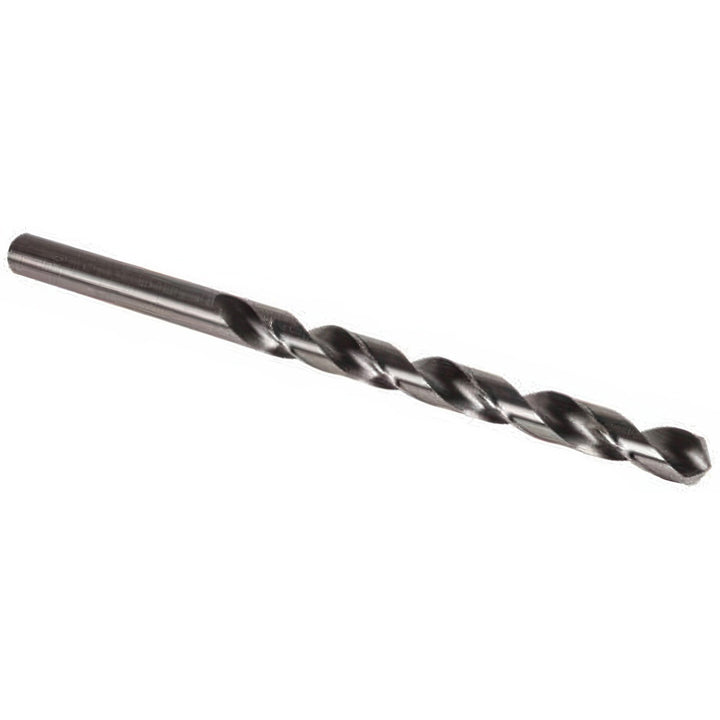

0.0472" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6000486

MFR# 6000486Series 5ATL

$4.97List $6.38 Save 22%

In stock - ships in 1-3 business days

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Precision Twist Drill 6000486 is a 0.0472" High Speed Steel drill bit, 118° point. 1-39/64 flute length. Series 5ATL.

Specifications

Coolant throughNo

Cutting directionRight Hand

Drill bit gradeGeneral Purpose

Drill bit size0.0472

Drill point angle degrees118

Flute length in1-39/64

Flute length x diameter ratio6xD

Flute typeSpiral

Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Cermet; Copper; Graphite; Hardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel

Overall length2-9/16

Point typeStandard

Shank diameter0.0472

Shank length (mm)24.00

Shank typeStraight

Specification numberDIN 340

Spiral typeRegular

StandardsDIN 340

Threaded shankNo

Tool materialHigh Speed Steel

Tool performanceGeneral Purpose

Web configurationTapered

Web thinningWeb-Thinned
