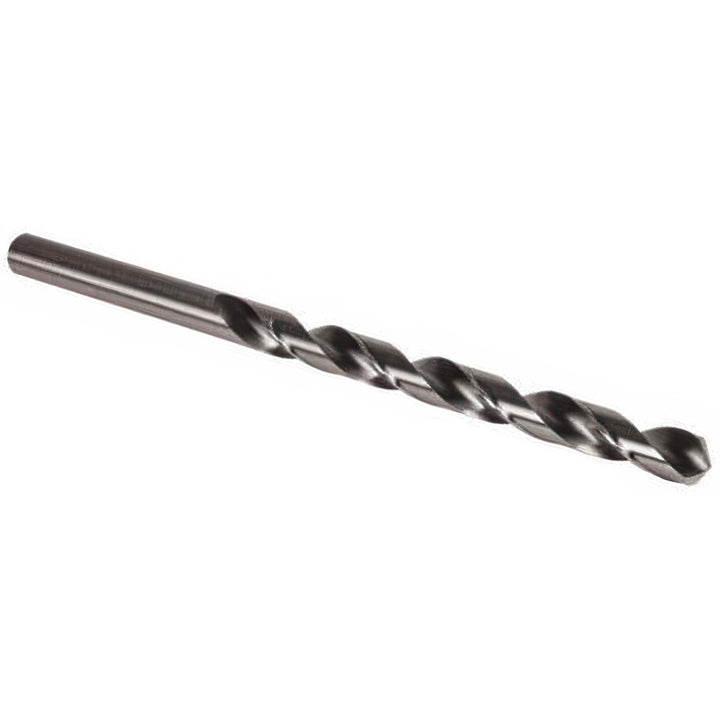

0.5118" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6000939
MFR# 6000939Series 5ATL
$37.78List $48.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Precision Twist Drill 6000939 is a 0.5118" High Speed Steel drill bit, 118° point. 5-9/32 flute length. Series 5ATL.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size0.5118
Drill point angle degrees118
Flute length in5-9/32
Flute length x diameter ratio6xD
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Cermet; Copper; Graphite; Hardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel
Overall length8-1/16
Point typeStandard
Shank diameter0.5118
Shank length (mm)134.00
Shank typeStraight
Specification numberDIN 340
Spiral typeRegular
StandardsDIN 340
Threaded shankNo
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
