#52 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002169

Precision Twist Drill

#52 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002169

MFR# 6002169Series D33F-D33W-D33L-D33M

$10.67List $13.56 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

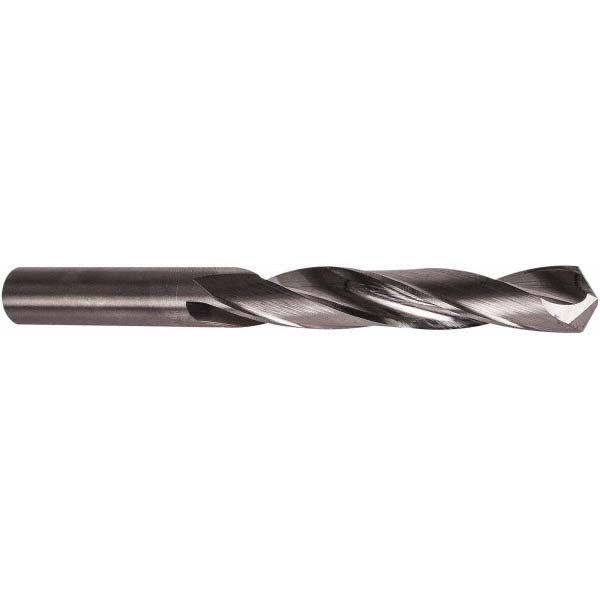

The Precision Twist Drill 6002169 is a #52 High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. 3/4 flute length, 1-1/2in overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.0635
Drill bit size range0.0500 - 0.1000
Drill bit size wire#52
Drill point angle degrees118
Flute by diameter ratio12xD
Flute length in3/4
Flute typeSpiral
Maximum drilling depth in3/4
Number of flats0
Number of flutes2
Overall length in1-1/2in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter0.0635
Shank length in3/4in
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
