#6 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002190

Precision Twist Drill

#6 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002190

MFR# 6002190Series D33F-D33W-D33L-D33M

$38.79List $48.89 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

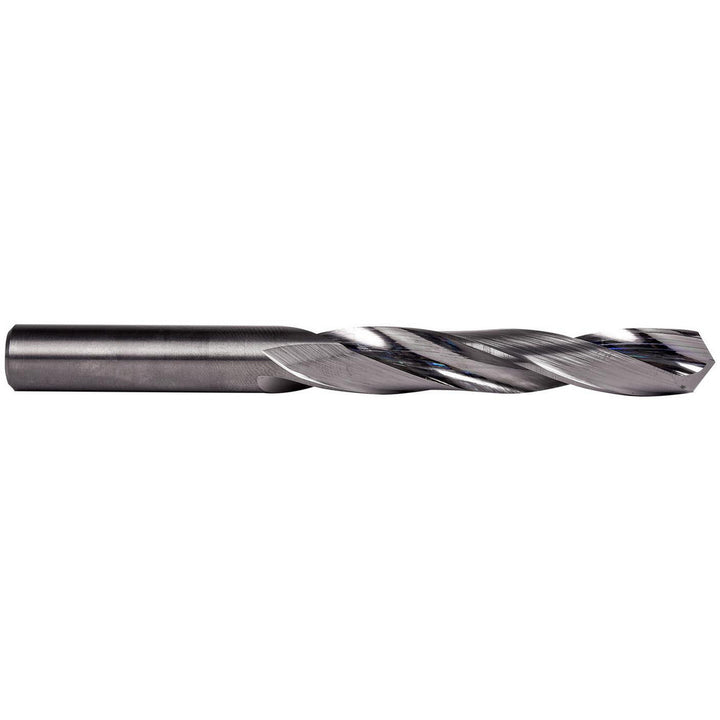

The Precision Twist Drill 6002190 is a #6 High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. 1-3/4 flute length, 3in overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.2040
Drill bit size range0.2000 - 0.2500
Drill bit size wire#6
Drill point angle degrees118
Flute by diameter ratio9xD
Flute length in1-3/4
Flute typeSpiral
Maximum drilling depth in1-3/4
Number of flats0
Number of flutes2
Overall length in3in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter0.2040
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
