0.0807" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002364

Precision Twist Drill

0.0807" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002364

MFR# 6002364Series D33F-D33W-D33L-D33M

$12.62List $15.87 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

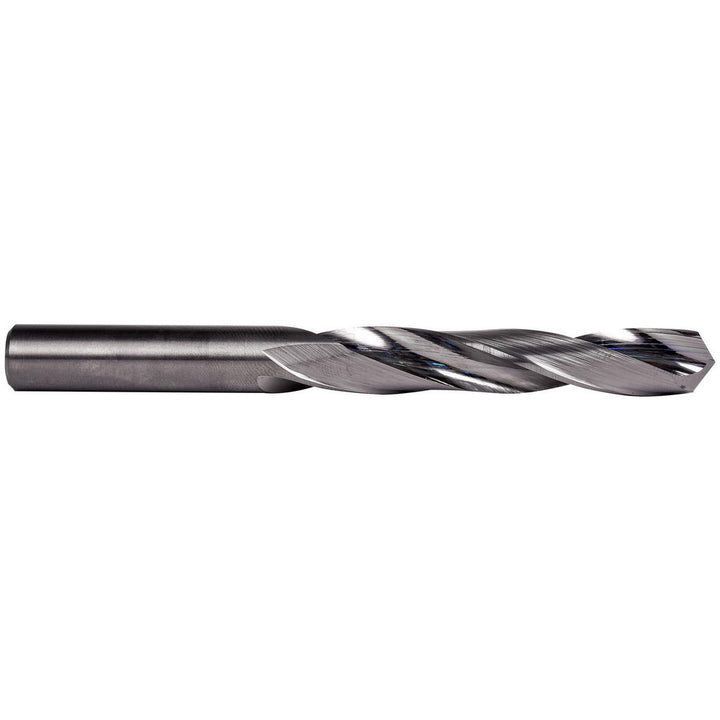

The Precision Twist Drill 6002364 is a 0.0807" High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.0807
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio11xD
Flute length0.8661
Flute typeSpiral
Maximum drilling depth0.8661
Number of flats0
Number of flutes2
Overall length1.7323
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter0.0807
Shank length0.8662in
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsD33M
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
