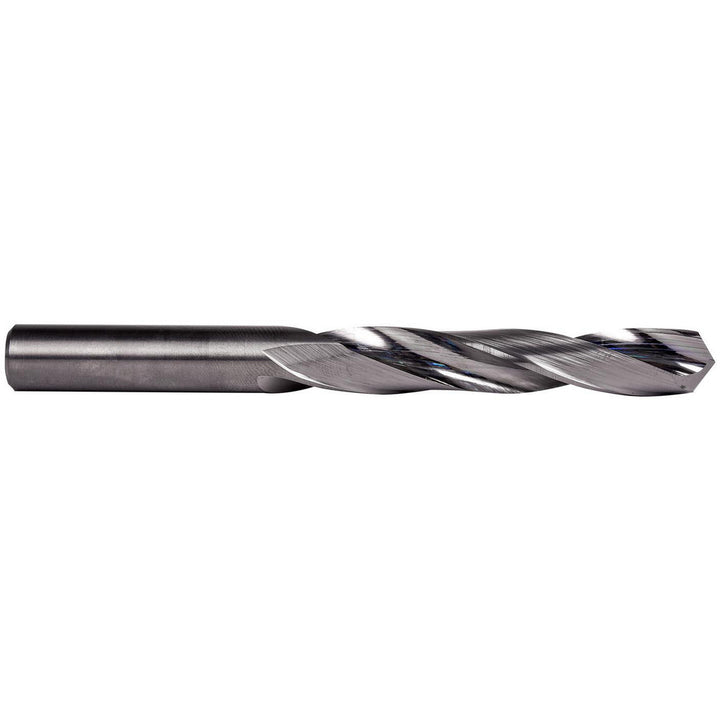

0.1772" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002390

Precision Twist Drill

0.1772" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002390

MFR# 6002390Series D33F-D33W-D33L-D33M

$44.36List $56.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Precision Twist Drill 6002390 is a 0.1772" High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.1772
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute by diameter ratio9xD
Flute length1.6142
Flute typeSpiral
Maximum drilling depth1.6142
Number of flats0
Number of flutes2
Overall length2.7559
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter0.1772
Shank length1.1417in
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsD33M
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
