Letter V Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002435

Precision Twist Drill

Letter V Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002435

MFR# 6002435Series D33F-D33W-D33L-D33M

$93.98List $120.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

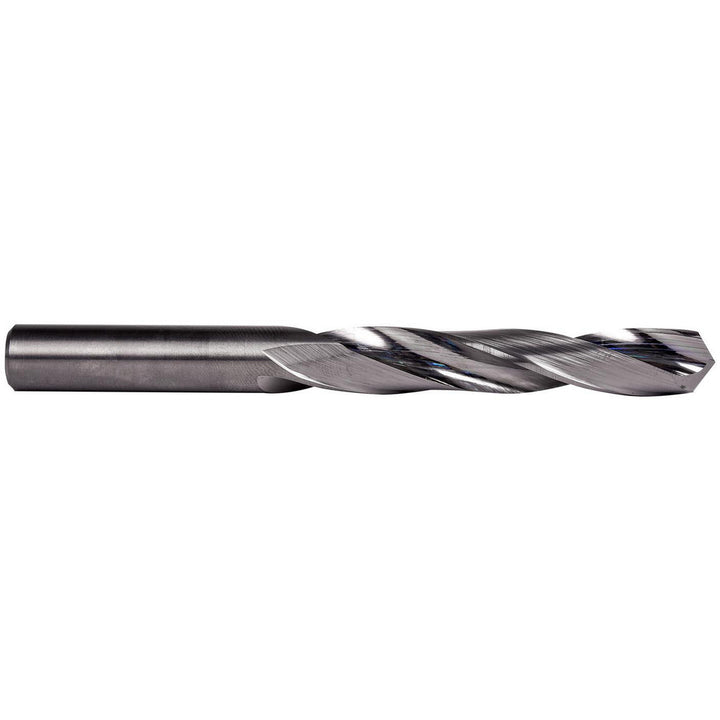

The Precision Twist Drill 6002435 is a Letter V Solid Carbide drill bit, 118° point. Suited for aluminum & non-ferrous. 2-3/4 flute length, 4-1/4 overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.3770
Drill bit size letterV
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute by diameter ratio7xD
Flute length in2-3/4
Flute typeRegular Spiral
Maximum drilling depth in2-3/4
Number of flats0
Number of flutes2
Overall length in4-1/4
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.3772
Shank length in1-1/2
Shank typeStraight
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
