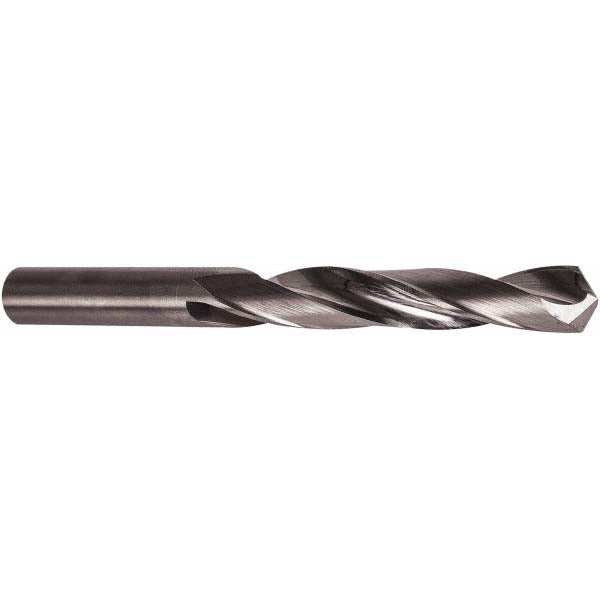

#19 Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002460

Precision Twist Drill

#19 Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002460

MFR# 6002460Series D33F-D33W-D33L-D33M

$22.55List $28.55 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Precision Twist Drill 6002460 is a #19 Solid Carbide drill bit, 118° point. Suited for aluminum & non-ferrous. 1-5/8 flute length, 2-3/4 overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1660
Drill bit size range0.1500 - 0.2000
Drill bit size wire#19
Drill point angle degrees118
Flute by diameter ratio10xD
Flute length in1-5/8
Flute typeRegular Spiral
Maximum drilling depth in1-5/8
Number of flats0
Number of flutes2
Overall length in2-3/4
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.1660
Shank length in1-1/8
Shank typeStraight
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
