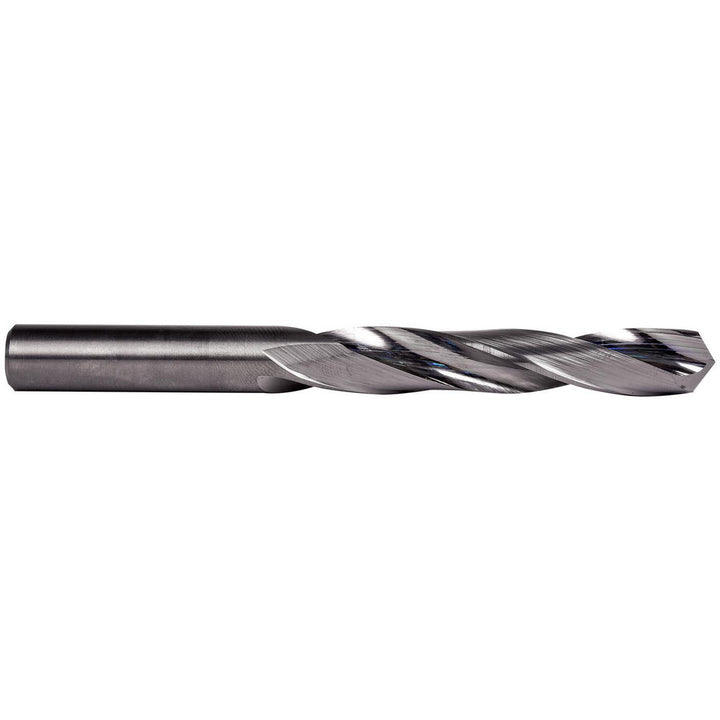

Letter W Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002470

Precision Twist Drill

Letter W Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002470

MFR# 6002470Series D33F-D33W-D33L-D33M

$96.40List $123.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Precision Twist Drill 6002470 is a Letter W Solid Carbide drill bit, 118° point. Suited for aluminum & non-ferrous. 2-7/8 flute length, 4-1/2 overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.3860
Drill bit size letterW
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute by diameter ratio7xD
Flute length in2-7/8
Flute typeRegular Spiral
Maximum drilling depth in2-7/8
Number of flats0
Number of flutes2
Overall length in4-1/2
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.3858
Shank length in1-5/8
Shank typeStraight
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
