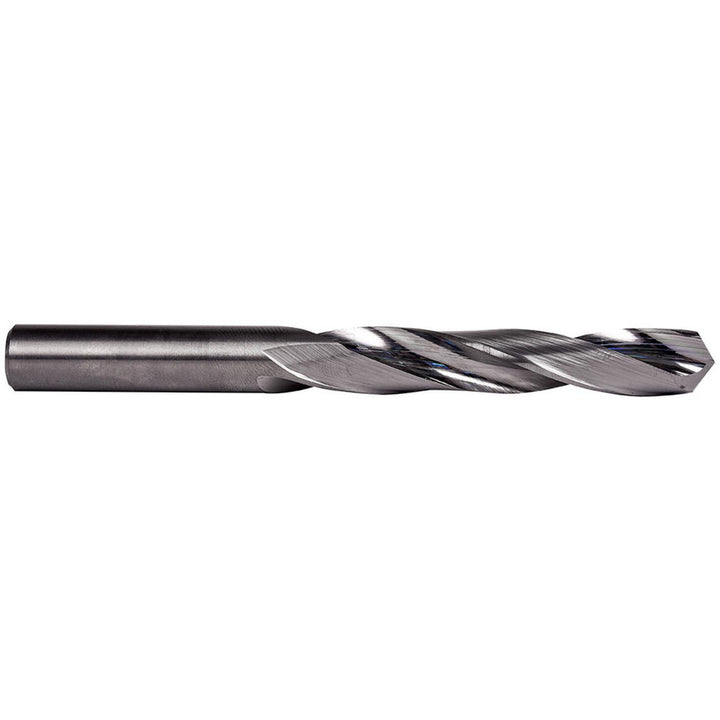

15/32" Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002707

Precision Twist Drill

15/32" Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002707

MFR# 6002707Series D33F-D33W-D33L-D33M

$102.93List $131.45 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/32
Flutes2

Description

The Precision Twist Drill 6002707 is a 15/32" Solid Carbide drill bit, 118° point. Suited for aluminum & non-ferrous. 3 flute length, 4-3/4 overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio6xD
Flute length in3
Flute typeRegular Spiral
Maximum drilling depth in3
Number of flats0
Number of flutes2
Overall length in4-3/4
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in15/32
Shank length in1-3/4
Shank typeStraight
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
