3/64" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002731

Precision Twist Drill

3/64" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002731

MFR# 6002731Series D33F-D33W-D33L-D33M

$11.19List $14.22 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/64
Flutes2

Description

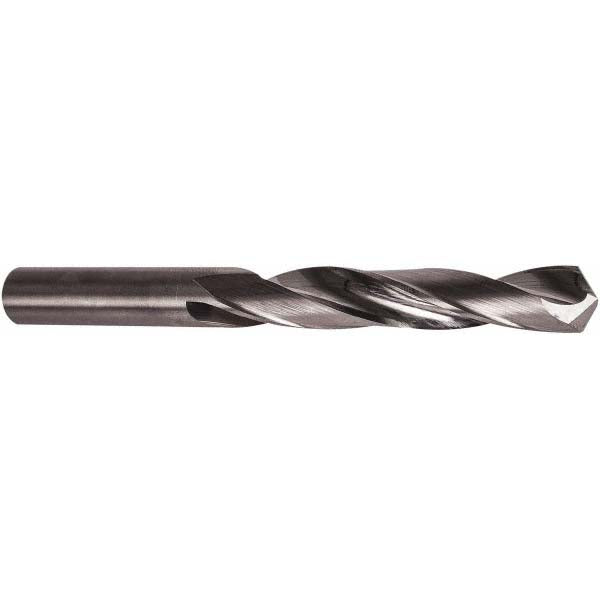

The Precision Twist Drill 6002731 is a 3/64" High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. 3/4 flute length, 1-1/2in overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size in3/64
Drill bit size range0.0000 - 0.0500
Drill point angle degrees118
Flute by diameter ratio16xD
Flute length in3/4
Flute typeSpiral
Maximum drilling depth in3/4
Number of flats0
Number of flutes2
Overall length in1-1/2in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in3/64in
Shank length in3/4in
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
