Letter F Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002747

Precision Twist Drill

Letter F Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002747

MFR# 6002747Series D33F-D33W-D33L-D33M

$40.79List $51.65 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

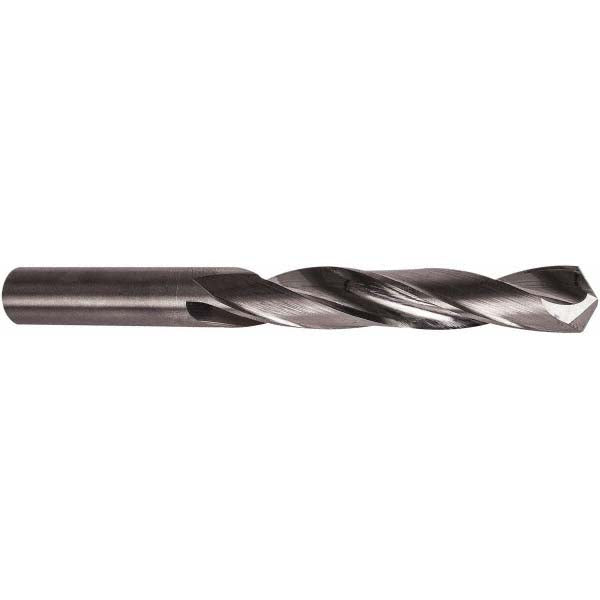

The Precision Twist Drill 6002747 is a Letter F Solid Carbide drill bit, 118° point. Suited for aluminum & non-ferrous. 2 flute length, 3-1/4 overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.2570
Drill bit size letterF
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio8xD
Flute length in2
Flute typeRegular Spiral
Maximum drilling depth in2
Number of flats0
Number of flutes2
Overall length in3-1/4
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.2571
Shank length in1-1/4
Shank typeStraight
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
