Precision Twist Drill

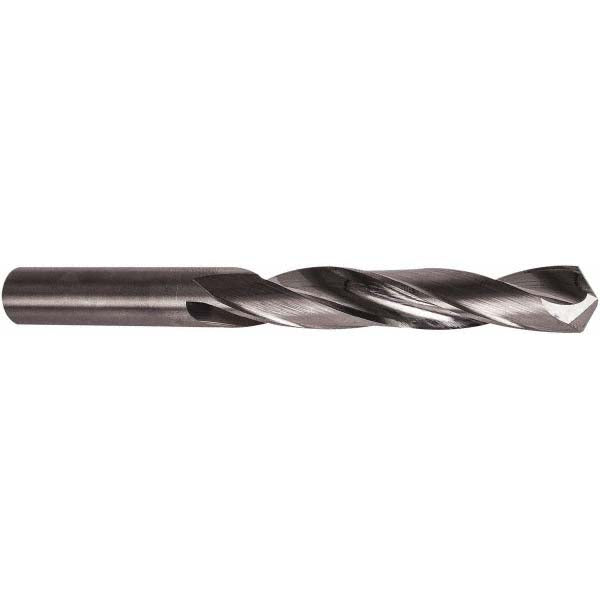

1/32" Solid Carbide Drill Bit, 118° point - Precision Twist Drill 6002760
MFR# 6002760Series D33F-D33W-D33L-D33M
$15.06List $19.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/32
Flutes2
Description
The Precision Twist Drill 6002760 is a 1/32" Solid Carbide drill bit, 118° point. Suited for aluminum & non-ferrous. 5/16 flute length, 1-1/4 overall length. Series D33F-D33W-D33L-D33M.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in1/32
Drill bit size range0.0000 - 0.0500
Drill point angle degrees118
Flute by diameter ratio10xD
Flute length in5/16
Flute typeRegular Spiral
Maximum drilling depth in5/16
Number of flats0
Number of flutes2
Overall length in1-1/4
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in1/32
Shank length in15/16
Shank typeStraight
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
