ProMax

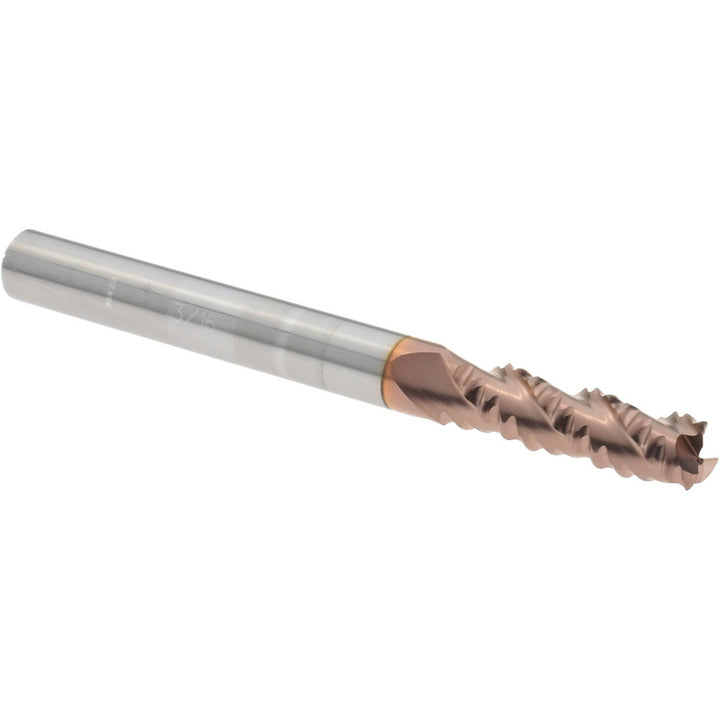

0.1875" 3-Flute Solid Carbide Roughing End Mill, TiCN - ProMax 100-01212
MFR# 100-01212Series 100
$49.05List $62.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiCN
Description
The ProMax 100-01212 is a 0.1875 3-flute Solid Carbide roughing end mill with a TiCN finish for longer tool life. Series 100.
Specifications
CentercuttingYes
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Length of cut0.6250
Maximum helix angle30
Mill diameter0.1875
Mill diameter frac in3/16
Mill diameter tolerance+0.000000 to -0.005000 in
Number of flutes3
PitchCoarse
Shank diameter in3/16
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
