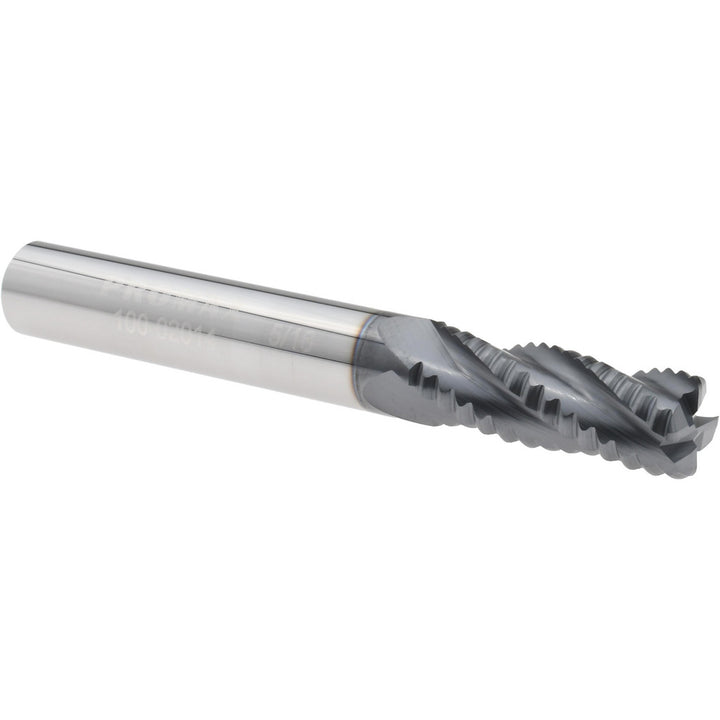

0.3125" 4-Flute Solid Carbide Roughing End Mill, AlTiN - ProMax 100-02014

ProMax

0.3125" 4-Flute Solid Carbide Roughing End Mill, AlTiN - ProMax 100-02014

MFR# 100-02014Series 100

$81.55List $104.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 100-02014 is a 0.3125 4-flute Solid Carbide (Micrograin) roughing end mill with a AlTiN finish for longer tool life. Series 100.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Length of cut0.7500
Material gradeMicrograin
Maximum helix angle30
Mill diameter0.3125
Mill diameter frac in5/16
Mill diameter tolerance+0.000000 to -0.005000 in
Number of flutes4
PitchCoarse
Shank diameter in5/16
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
