ProMax

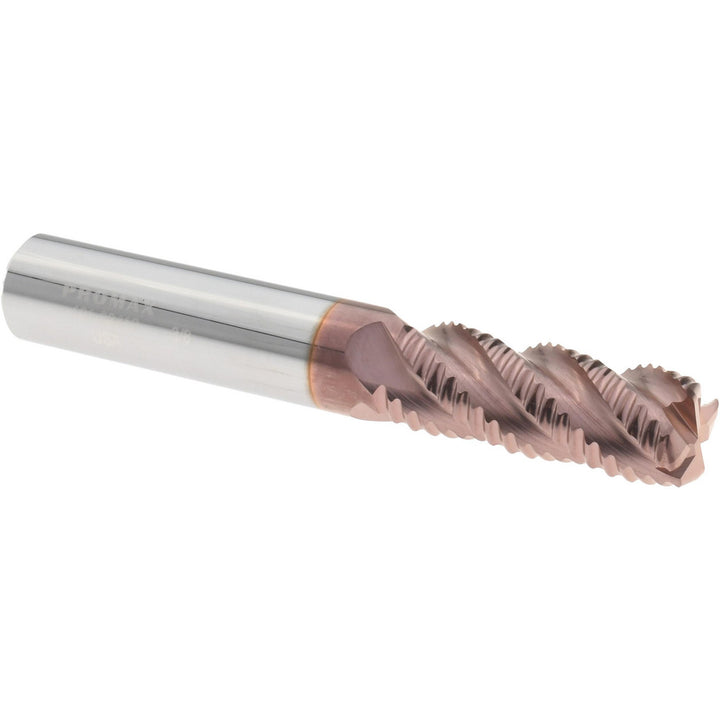

0.375" 4-Flute Solid Carbide Roughing End Mill, TiCN - ProMax 101-02412
MFR# 101-02412Series 101
$100.88List $129.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiCN
Description
The ProMax 101-02412 is a 0.375 4-flute Solid Carbide roughing end mill with a TiCN finish for longer tool life. Series 101.
Specifications
CentercuttingYes
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix styleHigh
Length of cut0.8750
Maximum helix angle40
Mill diameter0.375
Mill diameter frac in3/8
Mill diameter tolerance+0.000000 to -0.005000 in
Number of flutes4
PitchFine
Shank diameter in3/8
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
