0.5" 4-Flute Solid Carbide Roughing End Mill, AlTiN - ProMax 101-03214

MFR# 101-03214Series 101

$143.00List $183.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

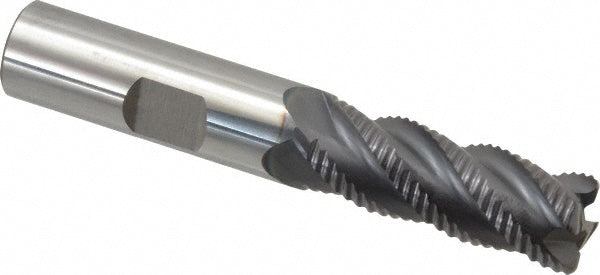

The ProMax 101-03214 is a 0.5 4-flute Solid Carbide (Micrograin) roughing end mill with a AlTiN finish for longer tool life. Series 101.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix styleHigh
Length of cut1.2500
Material gradeMicrograin
Maximum helix angle40
Mill diameter0.5
Mill diameter frac in1/2
Mill diameter tolerance+0.000000 to -0.005000 in
Number of flutes4
PitchFine
Shank diameter in1/2
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
