ProMax

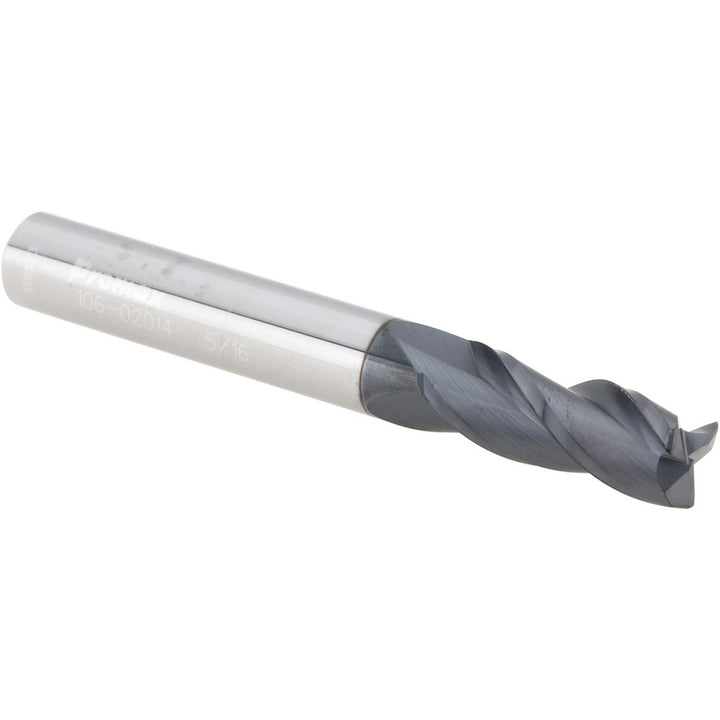

5/16" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 106-02014

MFR# 106-02014Series 106

$56.51List $70.83 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 106-02014 is a 5/16 3-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 106.

Specifications

CentercuttingNo

Coating finishAlTiN

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in3/4

Length typeRegular

Material gradeMicrograin

Mill diameter in5/16

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes3

Overall length in2-1/2

Shank diameter in5/16

Shank diameter tolerance-0.0001/-0.0004 in

Single or double endSingle

Variable helixNo

Variable indexNo
