ProMax

3/8" 3-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 106-02412

MFR# 106-02412Series 106

$62.86List $78.68 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingTiCN

Description

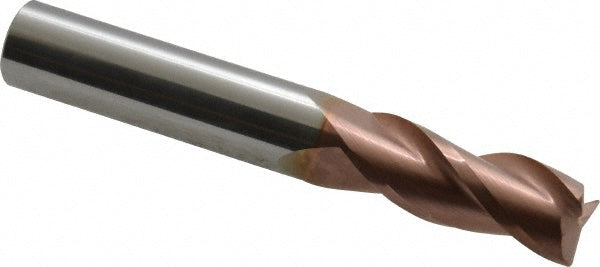

The ProMax 106-02412 is a 3/8 3-flute Solid Carbide (Micrograin) corner radius end mill with a TiCN finish for longer tool life. 7/8 length of cut, 2-1/2 overall length. Series 106.

Specifications

CentercuttingYes

Coating finishTiCN

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in7/8

Material gradeMicrograin

Maximum helix angle35

Mill diameter in3/8

Mill diameter tolerance+0.000000 to -0.002000 in

Number of flutes3

Overall length in2-1/2

Shank diameter in3/8

Shank diameter tolerance-0.0001 to -0.0004 in

Single or double endSingle

Variable indexNo
