ProMax

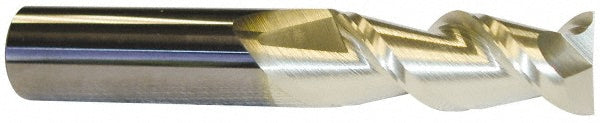

9/32" 2-Flute Solid Carbide Square End Mill, ZrN - ProMax 108-01816
MFR# 108-01816Series 108
$47.15List $60.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/32
Flutes2
MaterialSolid Carbide
CoatingZrN
Description
The ProMax 108-01816 is a 9/32 2-flute Solid Carbide (Micrograin) square end mill. 13/16 length of cut, 2-1/2 overall length. Series 108.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in13/16
Material gradeMicrograin
Mill diameter in9/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
