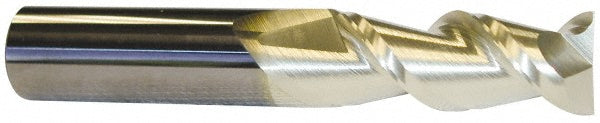

11/32" 2-Flute Solid Carbide Square End Mill, ZrN - ProMax 108-02216
MFR# 108-02216Series 108
$54.62List $70.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter11/32
Flutes2
MaterialSolid Carbide
CoatingZrN
Description
The ProMax 108-02216 is a 11/32 2-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-1/2 overall length. Series 108.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1
Material gradeMicrograin
Mill diameter in11/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
