ProMax

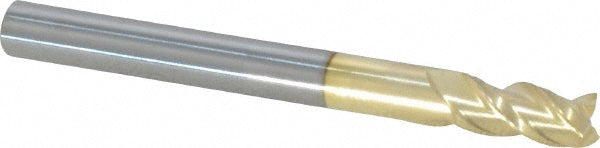

3/16" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-01226
MFR# 109-01226Series 109
$28.47List $35.89
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The ProMax 109-01226 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 2 overall length. Series 109.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
