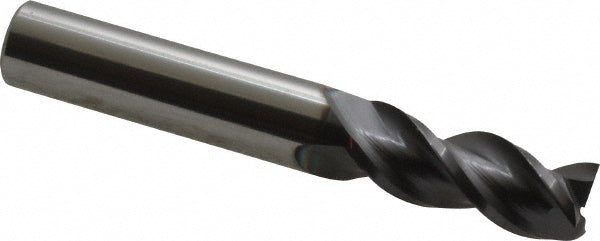

3/8" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-02414

ProMax

3/8" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-02414

MFR# 109-02414Series 109

$49.56List $63.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 109-02414 is a 3/8 3-flute Solid Carbide (Micrograin) square end mill. 7/8 length of cut, 2-1/2 overall length. Series 109.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Variable helixNo
