ProMax

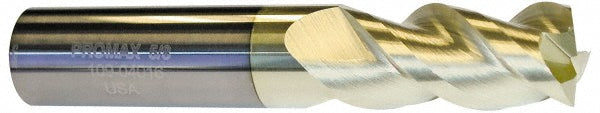

3/8" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-02436
MFR# 109-02436Series 109
$66.27List $85.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The ProMax 109-02436 is a 3/8 3-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 3-1/2 overall length. Series 109.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in3-1/2
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
