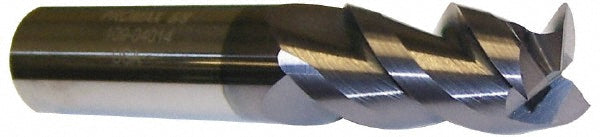

5/8" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-04034
MFR# 109-04034Series 109
$144.71List $185.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 109-04034 is a 5/8 3-flute Solid Carbide (Micrograin) square end mill. 1-3/4 length of cut, 4 overall length. Series 109.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-3/4
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in4
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
