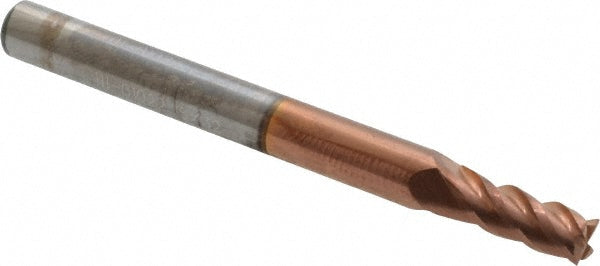

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-01022

ProMax

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-01022

MFR# 111-01022Series 111

$36.34List $45.80 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 111-01022 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 2 overall length. Series 111.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in3/8
Length typeRegular
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
