ProMax

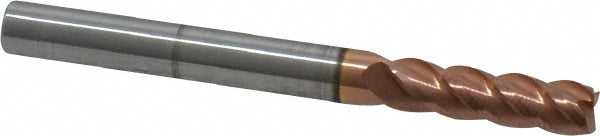

3/16" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-01212

MFR# 111-01212Series 111

$28.48List $36.52 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The ProMax 111-01212 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. Suited for high temperature alloy, stainless steel, steel. 5/8 length of cut, 2 overall length. Series 111.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Length of cut in5/8

Length of cut range0.6000 - 0.7000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in2

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/16

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeSquare

Variable helixNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
