5/16" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-02022

ProMax

5/16" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-02022

MFR# 111-02022Series 111

$46.75List $59.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

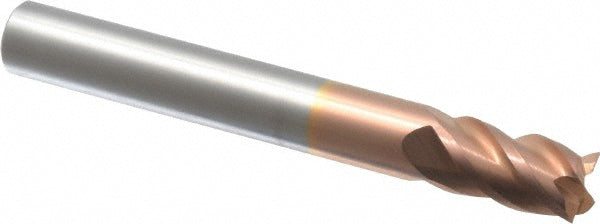

The ProMax 111-02022 is a 5/16 4-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2-1/2 overall length. Series 111.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
