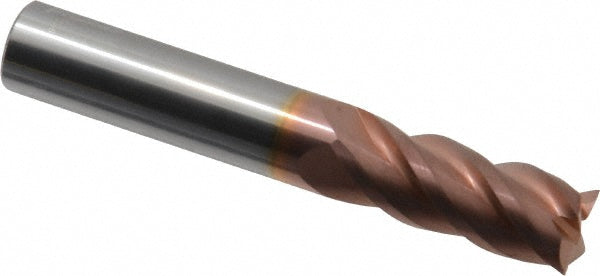

7/16" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-02812

ProMax

7/16" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-02812

MFR# 111-02812Series 111

$64.95List $83.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 111-02812 is a 7/16 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-3/4 overall length. Series 111.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
