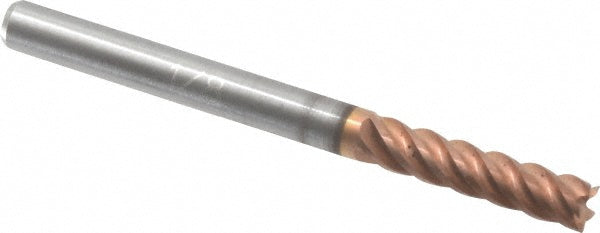

1/8" 5-Flute Solid Carbide Square End Mill, TiCN - ProMax 112-00812

ProMax

1/8" 5-Flute Solid Carbide Square End Mill, TiCN - ProMax 112-00812

MFR# 112-00812Series 112

$27.30List $35.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes5
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 112-00812 is a 1/8 5-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 1-1/2 overall length. Series 112.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.000/-0.002 in
Variable helixNo
Variable indexNo
