5/32" 5-Flute Solid Carbide Square End Mill, AlTiN - ProMax 112-01014

ProMax

5/32" 5-Flute Solid Carbide Square End Mill, AlTiN - ProMax 112-01014

MFR# 112-01014Series 112

$34.06List $43.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

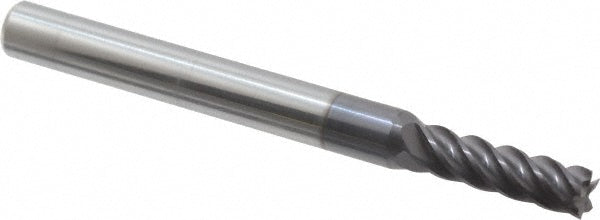

The ProMax 112-01014 is a 5/32 5-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2 overall length. Series 112.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
