7/16" 5-Flute Solid Carbide Square End Mill, AlTiN - ProMax 112-02814

ProMax

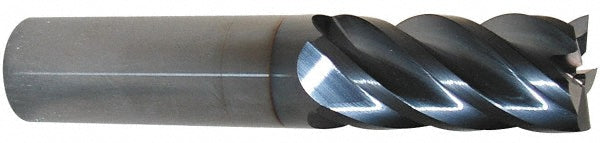

7/16" 5-Flute Solid Carbide Square End Mill, AlTiN - ProMax 112-02814

MFR# 112-02814Series 112

$69.83List $89.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 112-02814 is a 7/16 5-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-3/4 overall length. Series 112.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
