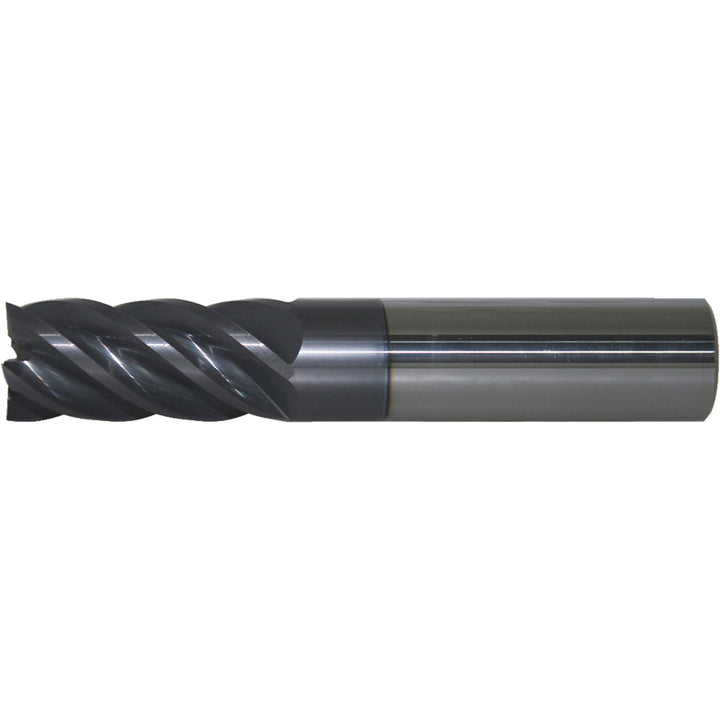

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - ProMax 112-03224

ProMax

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - ProMax 112-03224

MFR# 112-03224Series 112

$72.37List $92.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 112-03224 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 2-1/2 overall length. Series 112.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in5/8
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance-0.002 to +0.000 in
Number of flutes5
Overall length in2-1/2
Shank diameter in1/2
Shank diameter tolerance+0.0001/-0.004 in
Shank typeSquare
Variable helixNo
Variable indexNo
