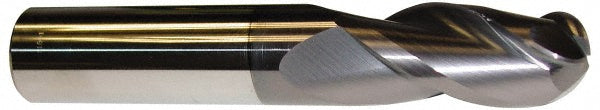

3/16in" 3-Flute Solid Carbide Ball End Mill, AlTiN - ProMax 113-01214
MFR# 113-01214Series 113
$38.50List $49.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16in
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 113-01214 is a 3/16in 3-flute Solid Carbide (Submicron) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 5/8in length of cut, 2in overall length. Series 113.
Specifications
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35
Helix styleMedium
Length of cut in5/8in
Length typeStandard
Manufacturers catalog number113-01214
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0938
Number of flutes3
Overall length in2in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length0.6250
Shank diameter in3/16in
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
