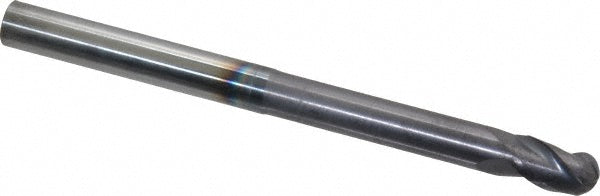

5/16in" 3-Flute Solid Carbide Ball End Mill, AlTiN - ProMax 113-02064
MFR# 113-02064Series 113
$105.17List $134.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16in
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 113-02064 is a 5/16in 3-flute Solid Carbide (Submicron) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 7/16in length of cut, 4in overall length. Series 113.
Specifications
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle35
Helix styleMedium
Length of cut in7/16in
Length typeExtended
Manufacturers catalog number113-02064
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in5/16in
Mill diameter tolerance+0.0000/-0.0020 in
Neck diameter0.3000in
Neck length in1-11/16in
Nose radius0.1563
Number of flutes3
Overall length in4in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in2-1/8
Shank diameter in5/16in
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
