ProMax

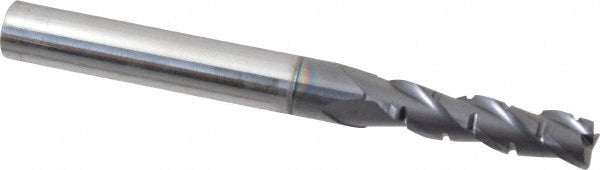

0.2188" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 117-01414
MFR# 117-01414Series 117
$60.97List $78.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 117-01414 is a 0.2188 3-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 3/4 length of cut. Series 117.
Specifications
CentercuttingYes
ChipbreakerYes
Coating finishAlTiN
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle35
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Maximum helix angle35
Mill diameter0.2188
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes3
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
