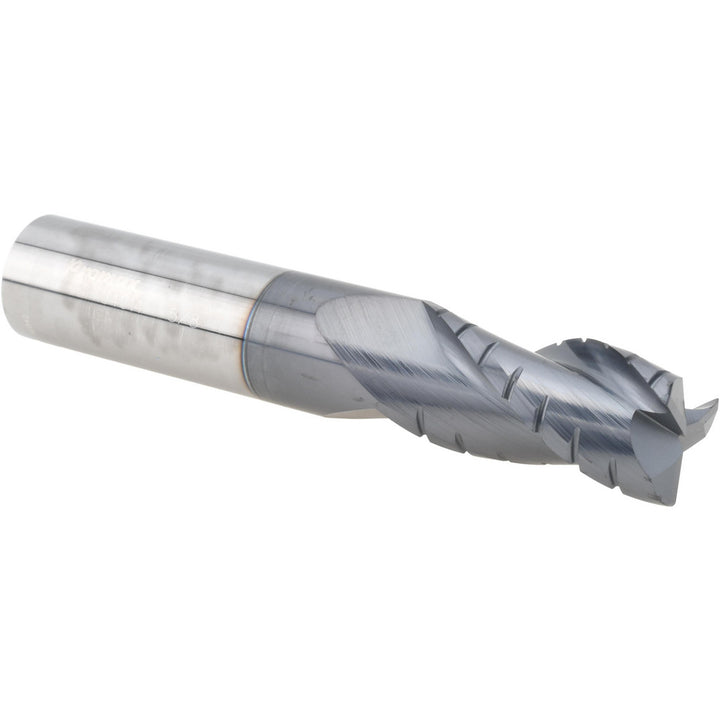

0.6250" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 117-04014

ProMax

0.6250" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 117-04014

MFR# 117-04014Series 117

$164.28List $210.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 117-04014 is a 0.6250 3-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 1-1/4 length of cut. Series 117.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishAlTiN
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle35
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Maximum helix angle35
Mill diameter0.6250
Mill diameter frac in5/8
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes3
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
