ProMax

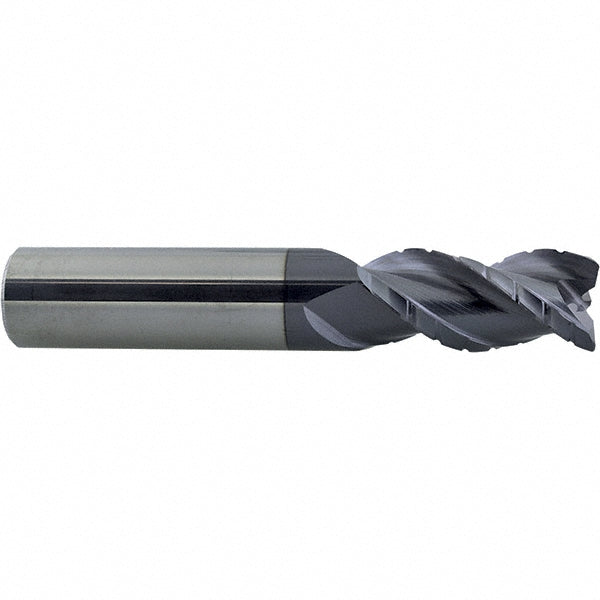

0.1250" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 119-00824
MFR# 119-00824Series 119
$34.24List $43.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 119-00824 is a 0.1250 3-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 1/4 length of cut. Series 119.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in1/4
Material gradeMicrograin
Maximum helix angle40
Mill diameter0.1250
Mill diameter frac in1/8
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes3
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
