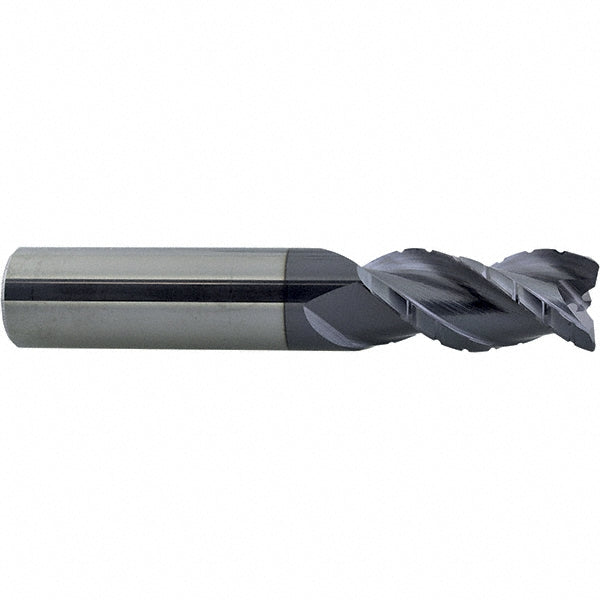

0.6250" 3-Flute Corner Radius End Mill, AlTiN - ProMax 119-04024

ProMax

0.6250" 3-Flute Corner Radius End Mill, AlTiN - ProMax 119-04024

MFR# 119-04024Series 119

$145.18List $186.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingAlTiN

Description

The ProMax 119-04024 is a 0.6250 3-flute (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 7/8 length of cut. Series 119.

Specifications

ChipbreakerNo
Coating finishAlTiN
Corner radius0.0300
Cutting directionRight Hand
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in7/8
Material gradeMicrograin
Mill diameter0.6250
Mill diameter frac in5/8
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes3
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
