ProMax

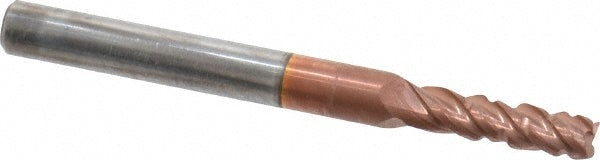

0.1563" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 120-01012
MFR# 120-01012Series 120
$46.49List $59.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiCN
Description
The ProMax 120-01012 is a 0.1563 4-flute Solid Carbide corner radius end mill with a TiCN finish for longer tool life. 1/2 length of cut. Series 120.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in1/2
Length typeRegular
Maximum helix angle40
Mill diameter0.1563
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes4
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
