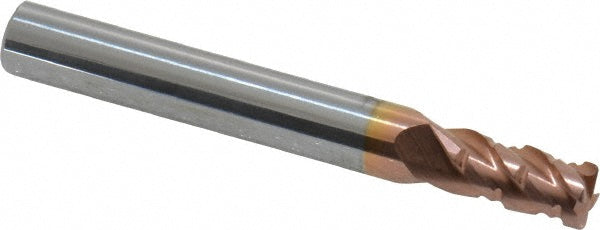

0.2188" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 120-01422

ProMax

0.2188" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 120-01422

MFR# 120-01422Series 120

$60.27List $75.96 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 120-01422 is a 0.2188 4-flute Solid Carbide corner radius end mill with a TiCN finish for longer tool life. 3/8 length of cut. Series 120.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in3/8
Length typeStub
Maximum helix angle40
Mill diameter0.2188
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes4
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
