ProMax

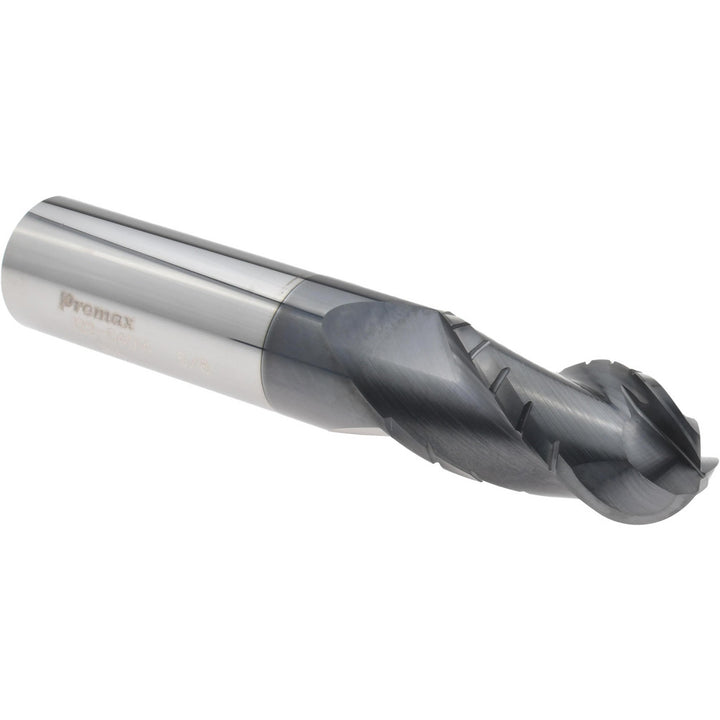

0.6250" 3-Flute Solid Carbide Ball End Mill, AlTiN - ProMax 122-04014
MFR# 122-04014Series 122
$169.56List $217.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 122-04014 is a 0.6250 3-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1-1/4 length of cut. Series 122.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
End typeBall
Extended reachNo
Flute directionRight Hand
Helix angle35
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Maximum helix angle35
Mill diameter0.6250
Mill diameter frac in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
